cisco AP AIR-CAP1702I-H-K9调试配置基础教程

offoce66 2022-03-19 17:03:10路由器

cisco AP AIR-CAP1702I-H-K9调试配置

连接拓扑，将console线连接AP，将笔记本网线连接AP

cisco AP AIR-CAP1702I-H-K9调试配置

打开secureCRT连接

用户名：Cisco 密码：Cisco

cisco AP AIR-CAP1702I-H-K9调试配置

ap#show running-config

Building configuration...

Current configuration : 1723 bytes

! Last configuration change at 00:00:33 UTCMon Mar 1 1993

version 15.3

no service pad

service timestamps debug datetime msec

service timestamps log datetime msec

service password-encryption

hostname ap

logging rate-limit console 9

enable secret 5$1$1Chs$5IlDfEc/JrhQYEXJDrQ4Y.

no aaa new-model

no ip source-route

no ip cef

dot11 syslog

username CISCO password 7 1531021F0725

bridge irb

interface Dot11Radio0

noip address

shutdown

antenna gain 0

station-role root

bridge-group 1

bridge-group 1 subscriber-loop-control

bridge-group 1 spanning-disabled

bridge-group 1 block-unknown-source

nobridge-group 1 source-learning

nobridge-group 1 unicast-flooding

interface Dot11Radio1

noip address

shutdown

antenna gain 0

peakdetect

nodfs band block

channel dfs

station-role root

bridge-group 1

bridge-group 1 subscriber-loop-control

bridge-group 1 spanning-disabled

bridge-group 1 block-unknown-source

nobridge-group 1 source-learning

nobridge-group 1 unicast-flooding

interface GigabitEthernet0

noip address

duplex auto

speed auto

bridge-group 1

bridge-group1 spanning-disabled

nobridge-group 1 source-learning

interface GigabitEthernet1

noip address

duplex auto

speed auto

bridge-group 1

bridge-group 1 spanning-disabled

nobridge-group 1 source-learning

interface BVI1

mac-address843d.c6a9.2354

ipaddress dhcp client-id GigabitEthernet0

ipv6address dhcp

ipv6address autoconfig

ipv6enable

ip forward-protocol nd

ip http server

no ip http secure-server

ip http help-pathhttp://www.cisco.com/warp/public/779/smbiz/prodconfig/help/eag

bridge 1 route ip

line con 0

line vty 0 4

transport input all

end

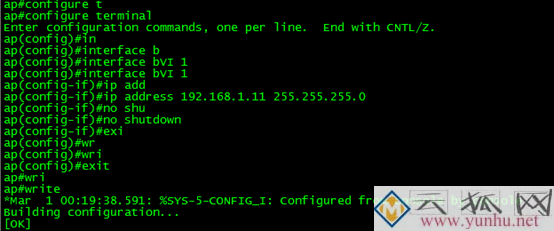

配置BVI接口。

这里提到了一个概念，即网桥组（Bridge-Group）。要实现不同的端口之间的桥接交换，必须将这些端口归到同一个网桥组当中。从概念上说，配置为同一个网桥组中的所有端口属于同一个第二层的广播域，不管这个端口类型是广域网端口还是以太网端口，也不管这个端口是物理端口还是逻辑端口（如X.25的子口或以太网的VLAN子口）。Cisco路由器为每一个已配置的网桥组自动产生一个虚拟接口，称之为Beidge-Group Virtual Interface（BVI），在不同的BVI之间或BVI与其它的端口之间可以实现路由的能力。

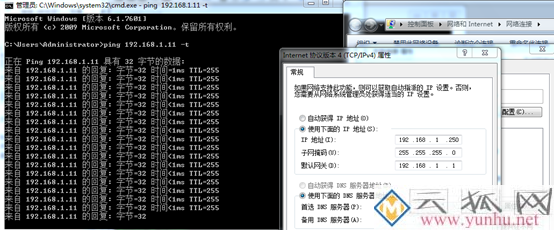

本地配置ip地址查看与AP是否连通。
