思科瘦AP转胖AP AIR-LAP1131AG-C-K9配置基础教程(3/3)
extracting c1130-k9w7-mx.124-10b.JDA3/7101.img (131328 bytes)............................
extracting c1130-k9w7-mx.124-10b.JDA3/6701.img (131328 bytes)............................
extracting c1130-k9w7-mx.124-10b.JDA3/info (283 bytes)
extracting info.ver (283 bytes)
Deleting current version...
Deleting flash:/c1130-rcvk9w8-mx...done.
New software image installed in flash:/c1130-k9w7-mx.124-10b.JDA3
Configuring system to use new image...done.
Requested system reload in progress...download took about 317 seconds
Loading "flash:/c1130-k9w7-mx.124-10b.JDA3/c1130-k9w7-mx.124-10b.JDA3"...##########################################################################################################################################################################################################################################################################################################################################################################################################################################################################################
File "flash:/c1130-k9w7-mx.124-10b.JDA3/c1130-k9w7-mx.124-10b.JDA3" uncompressed and installed, entry point: 0x3000
executing...
Restricted Rights Legend
Use, duplication, or disclosure by the Government is
subject to restrictions as set forth in subparagraph
(c) of the Commercial Computer Software - Restricted
Rights clause at FAR sec. 52.227-19 and subparagraph
(c) (1) (ii) of the Rights in Technical Data and Computer
Software clause at DFARS sec. 252.227-7013.
cisco Systems, Inc.
170 West Tasman Drive
San Jose, California 95134-1706
Cisco IOS Software, C1130 Software (C1130-K9W7-M), Version 12.4(10b)JDA3, RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2009 by Cisco Systems, Inc.
Compiled Sun 07-Jun-09 02:59 by prod_rel_team
Image text-base: 0x00003000, data-base: 0x0086A6E0
Initializing flashfs...
flashfs[1]: 170 files, 13 directories
flashfs[1]: 0 orphaned files, 0 orphaned directories
flashfs[1]: Total bytes: 15998976
flashfs[1]: Bytes used: 10827264
flashfs[1]: Bytes available: 5171712
flashfs[1]: flashfs fsck took 4 seconds.
flashfs[1]: Initialization complete....done Initializing flashfs.
Radio 1 A506 7100 E8000000 A0000000 80000000 3
Radio 1 A506 6700 E8000100 A0040000 80010000 2
tx_paks 991
tx_paks 495
This product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.
A summary of U.S. laws governing Cisco cryptographic products may be found at:
http://www.cisco.com/wwl/export/crypto/tool/stqrg.html
If you require further assistance please contact us by sending email to
export@cisco.com.
cisco AIR-LAP1131AG-C-K9 (PowerPCElvis) processor (revision B0) with 24566K/8192K bytes of memory.
Processor board ID FCW1431V0JL
PowerPCElvis CPU at 262Mhz, revision number 0x0950
Last reset from power-on
1 FastEthernet interface
2 802.11 Radio(s)
32K bytes of flash-simulated non-volatile configuration memory.
Base ethernet MAC Address: D0:D0:FD:BC:E1:A0
Part Number : 73-8962-14
PCA Assembly Number : 800-24818-13
PCA Revision Number : A0
PCB Serial Number : FOC142922S6
Top Assembly Part Number : 800-29144-03
Top Assembly Serial Number : FCW1431V0JL
Top Revision Number : A0
Product/Model Number : AIR-LAP1131AG-C-K9
Press RETURN to get started!
刷新完成之后，可以看到如下图所示，已民经传完的ios镜像。
Show version时，可以看到ios已经改变。
这时，可以进入配置模式。
Enter configuration commands, one per line. End with CNTL/Z.
ap(config)#
ap(config)#interface bVI 1
ap(config-if)#ip address 10.41.0.81 255.255.255.0
ap(config-if)#no shutdown
ap#write
这时，可以在浏览器中，输入10.41.0.81进入配置界面。
打开IE窗口 键入http：//ap的管理地址
输入用户名：Cisco 密:Cisco
1、登录到配置界面。左面的界面，home主页
2、进入express setup快速安装。设置AP名字
3、进入安全配置选项
4、点击左侧"security下ssid manager"，右侧ssid一栏中填入"自定义的名字"，将"Radio0"和"Radio1"，前面打上"对勾"。
5、拖动右侧的活动条到下图：点击"apply"
6 应用后，在最下面一项中 "Radio0"和"Radio1"中，都选择 single bssid， 在"set single guest mode ssid"一项中，在下拉菜单中选择刚刚建立好的ssid。 点击"apply"
点击上图的radious R0
7、检查无线端口启用状态，点击左侧的"network interfaces"下的"Radio0"和"Radio1"检查，这两个无线端口是否启用。
8、选择最上侧的"settings"，确保选择"enable"和"access point"，如果选择后，点击下面的应用。
开启第二个接入点时报错，提示需要选择一个data Rates
9、配置无线安全接入认证

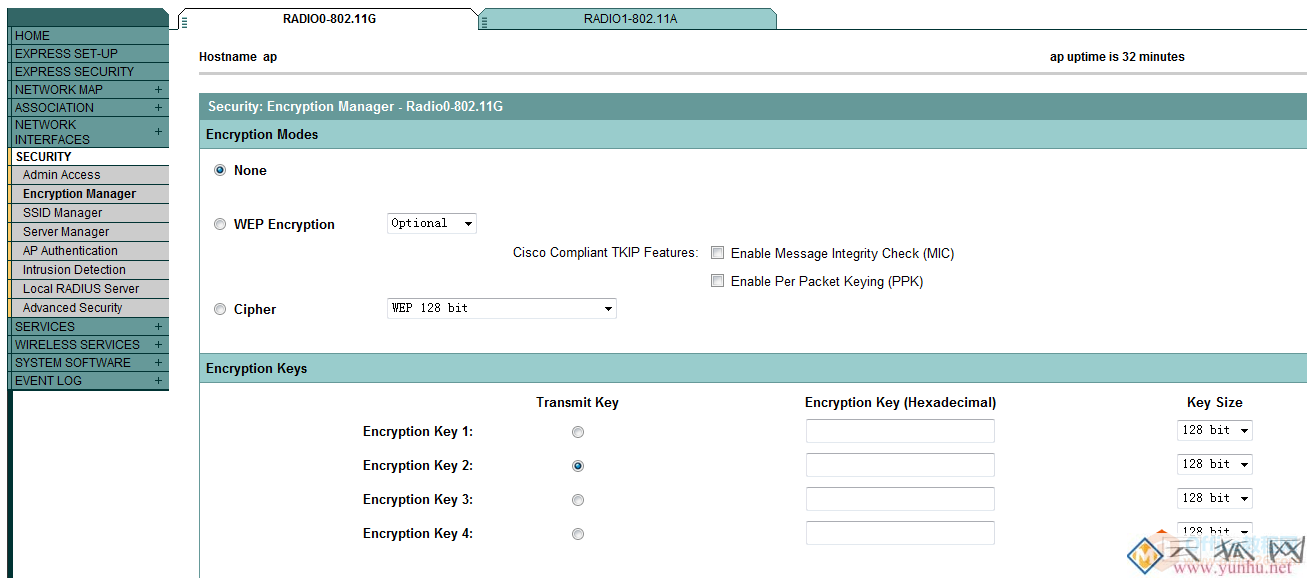

点击左侧"security下的encryption Manager"分别配置"Radio0""Radio1"。两个接口配置相同。
选择"cipher"点击下拉菜单，选择"wep 40 bit" 选择 encryption key 1： 密钥 是 "字母a 到 f" "数字1 到 9"自由组合，长度必须是10位以上的，包含10位。 Key size 下拉菜单选择"40 bit" 点击"apply"
10、可以更改信道。
